After you install Tatlin, you can run it and open STL or G-code files by going to the File menu and selecting Open or by clicking Open in the middle of the window. Once you have located the file you wish to view on the file system and selected Open in the file selection dialog, Tatlin will begin parsing and loading the file.

Upon opening your file, Tatlin will display the model in the 3D canvas section of the UI. The model should now be ready for interaction. Depending on the file type you selected, the options on the right hand side of the UI will be slightly different, however the mouse navigation will be identical between G-code and STL modes. These mouse controls will enable you to zoom, pan and rotate your model and should be reasonably familiar if you have previous experience with 3D navigation in other programs. The controls are as follows:

• Hold the Left Mouse button while moving the mouse to rotate the camera.
• Use the Mouse wheel to zoom in and out.
• Hold the Right Mouse button while moving the mouse to pan the camera.

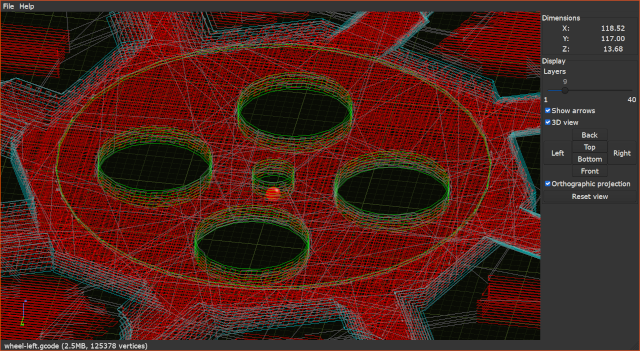

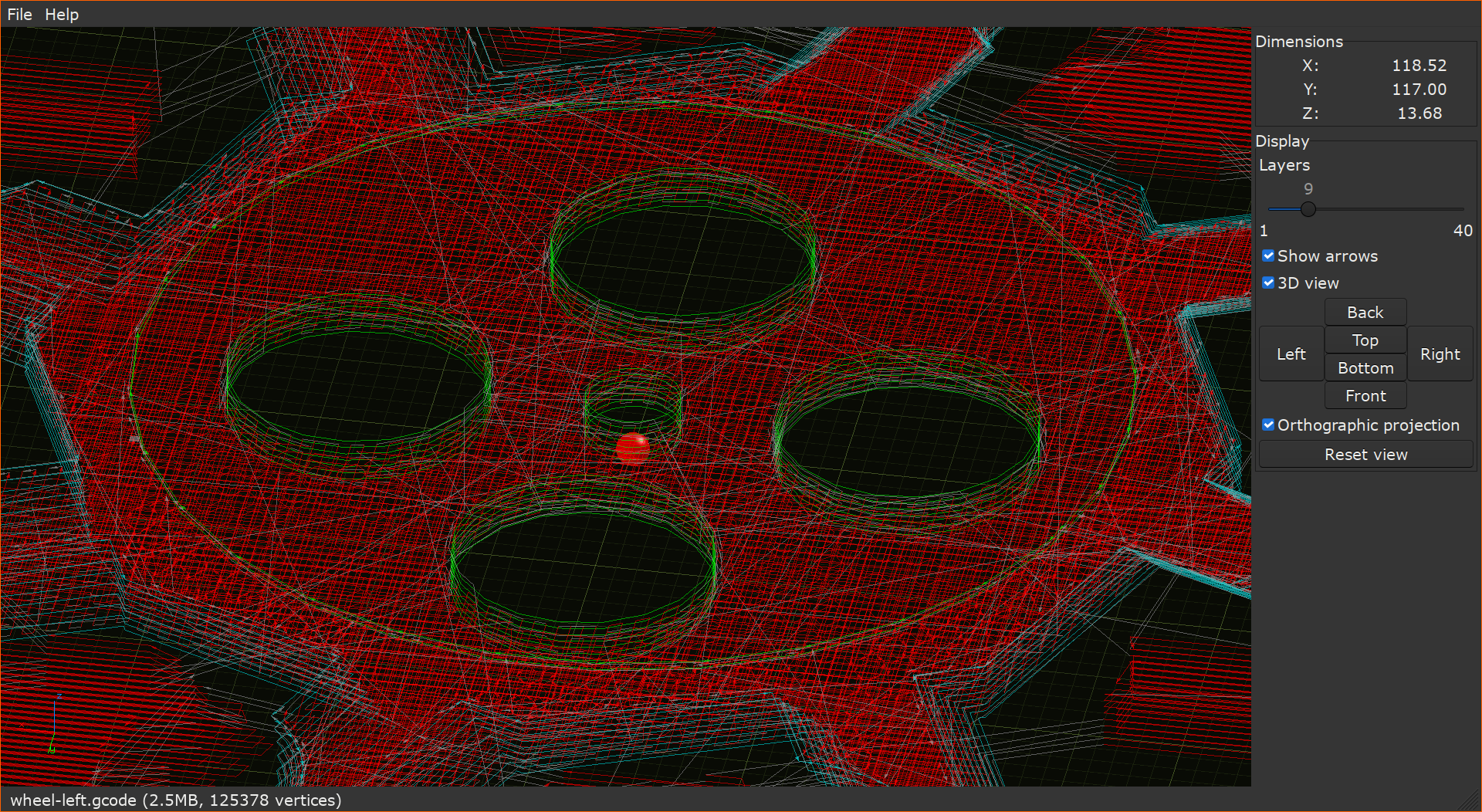

• Hold the Middle Mouse button while moving the mouse to change the camera's pivot point, visualized by a small red sphere in the scene.

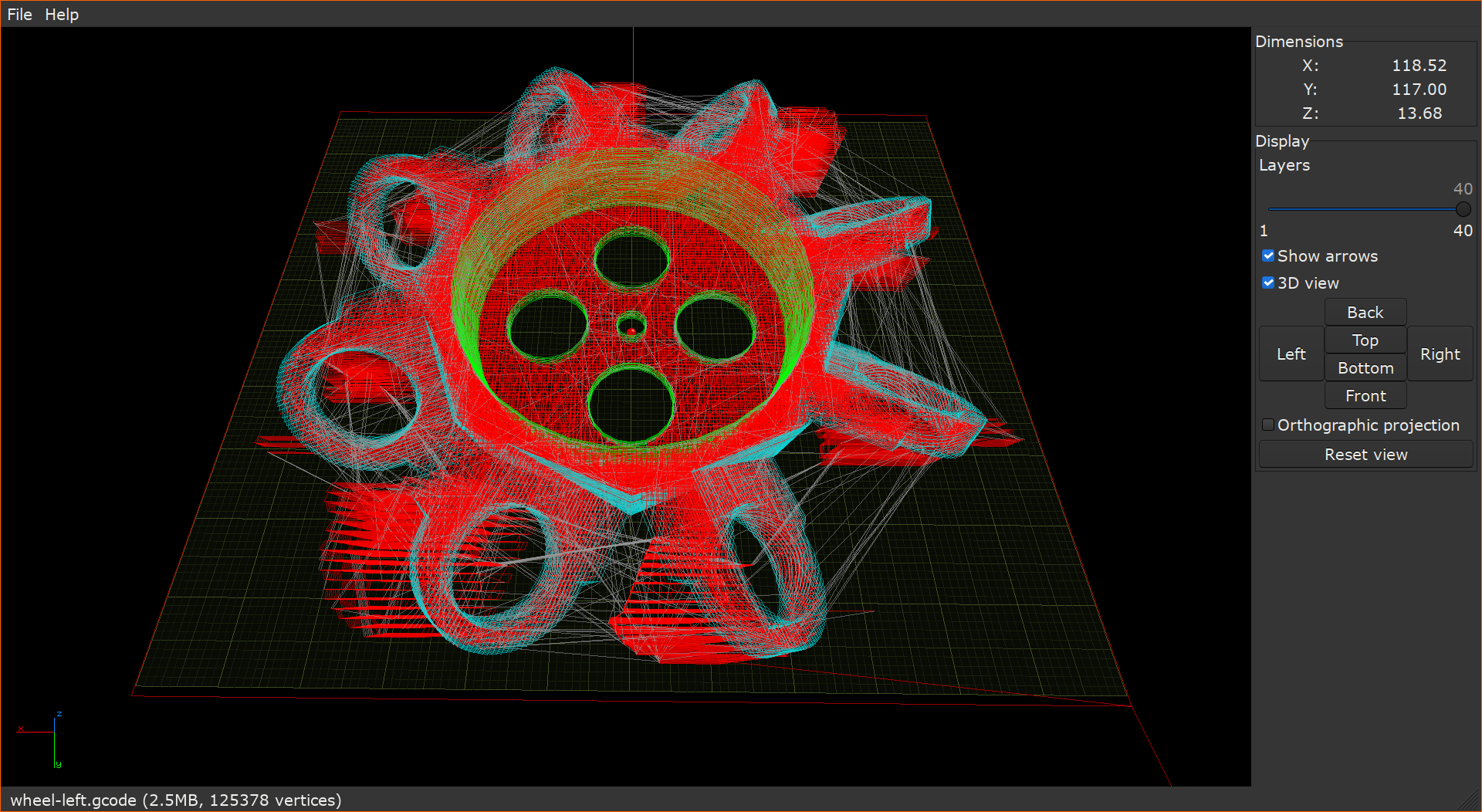

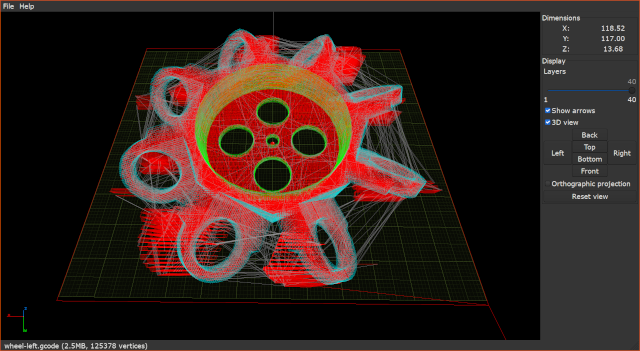

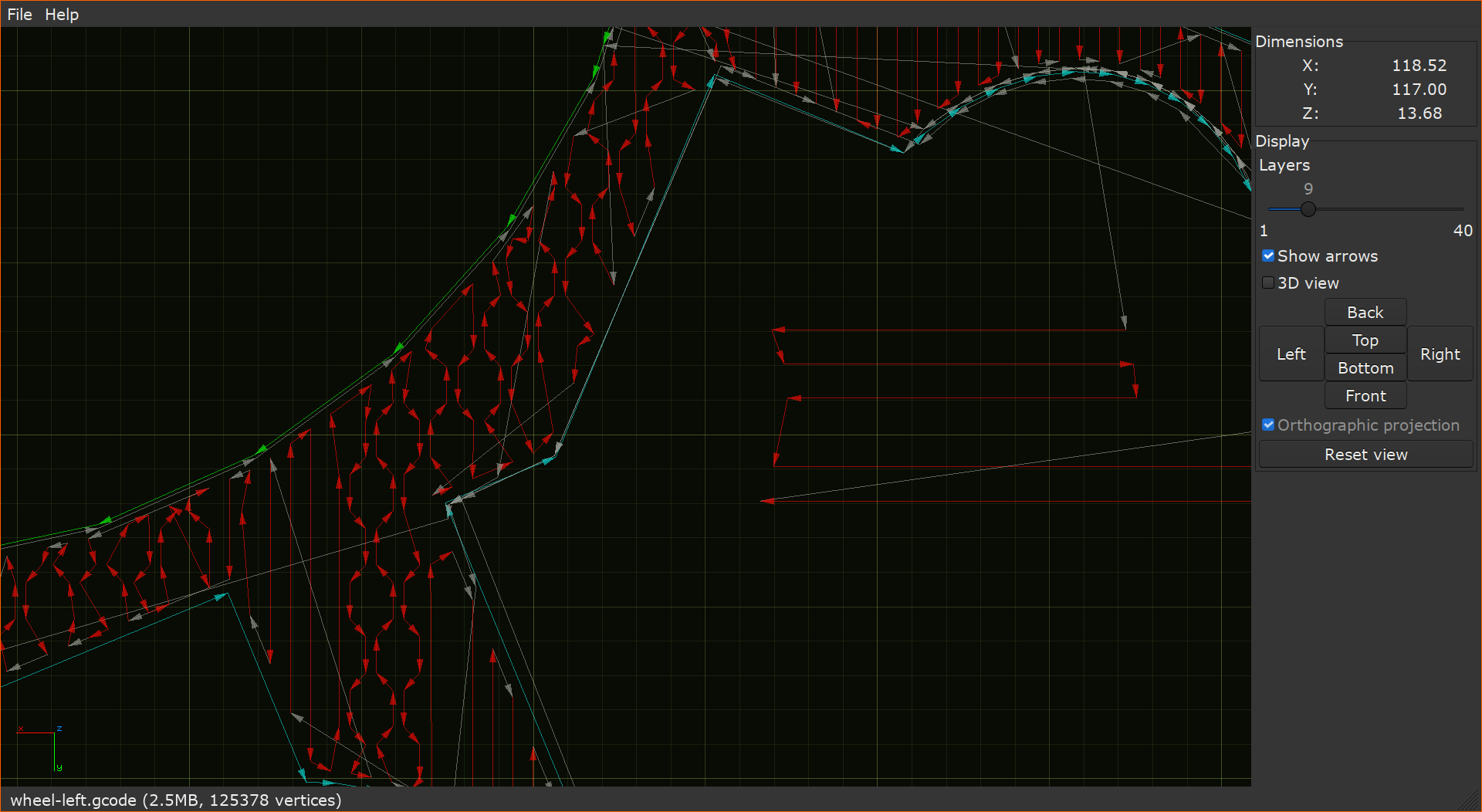

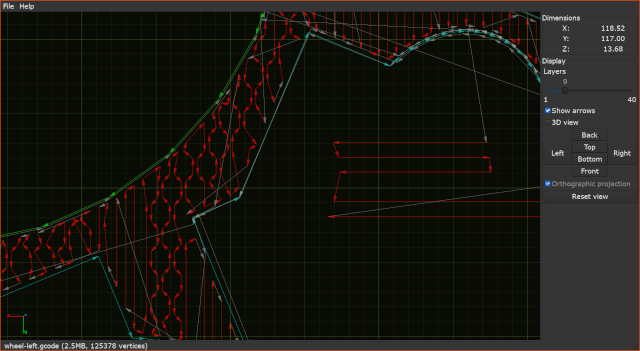

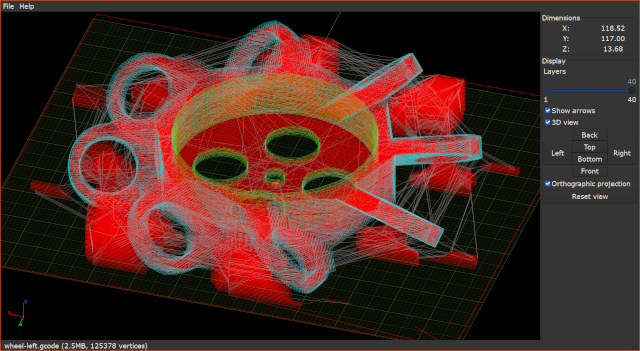

In G-code mode, Tatlin will present you with a Layers slider allowing you to inspect the toolpath layer by layer and two checkboxes. The first checkbox, Show arrows, allows you to toggle the display of directional arrows for each G-code command. The second checkbox, 3D view, allows you to switch from the 3D view to 2D for each layer in isolation.

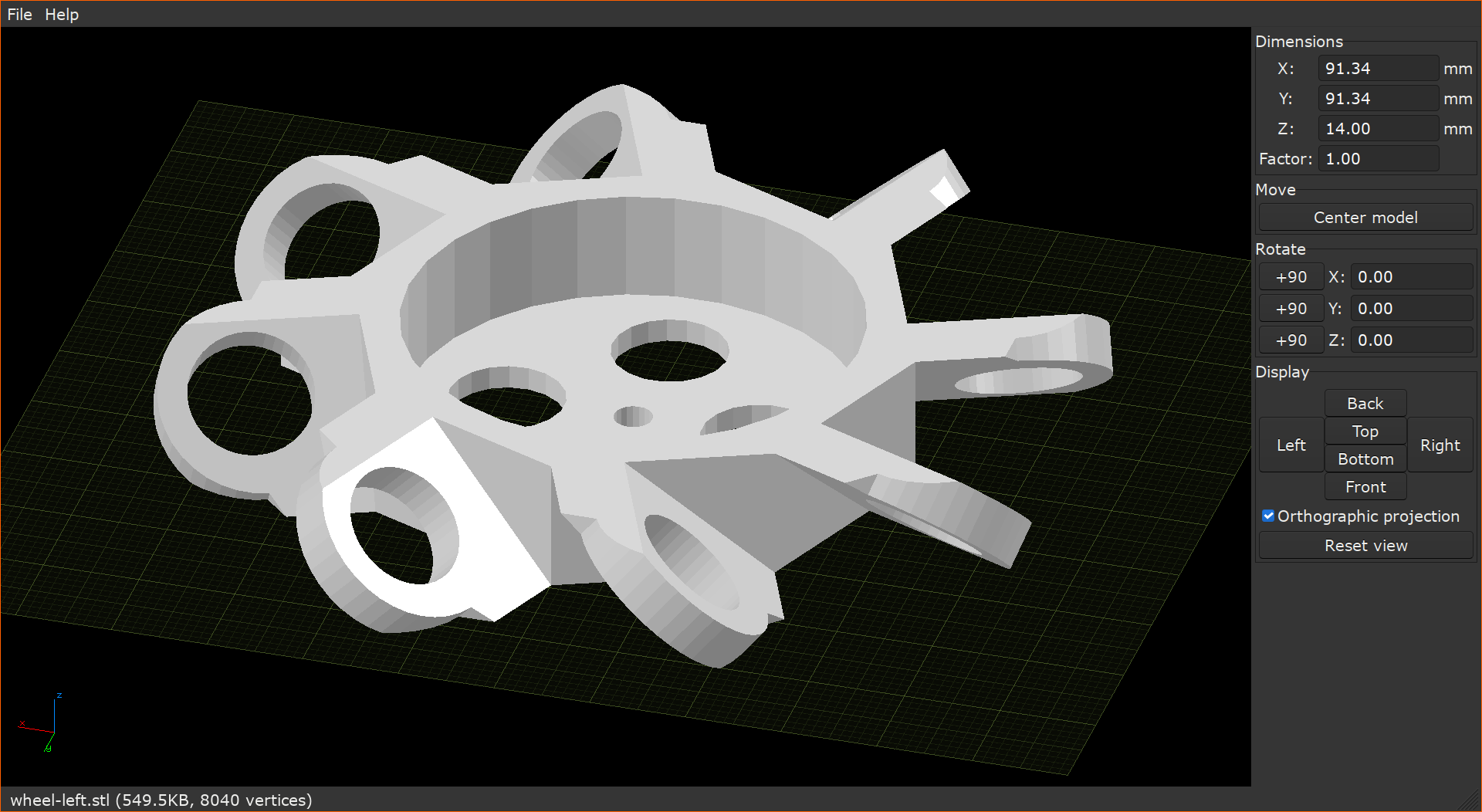

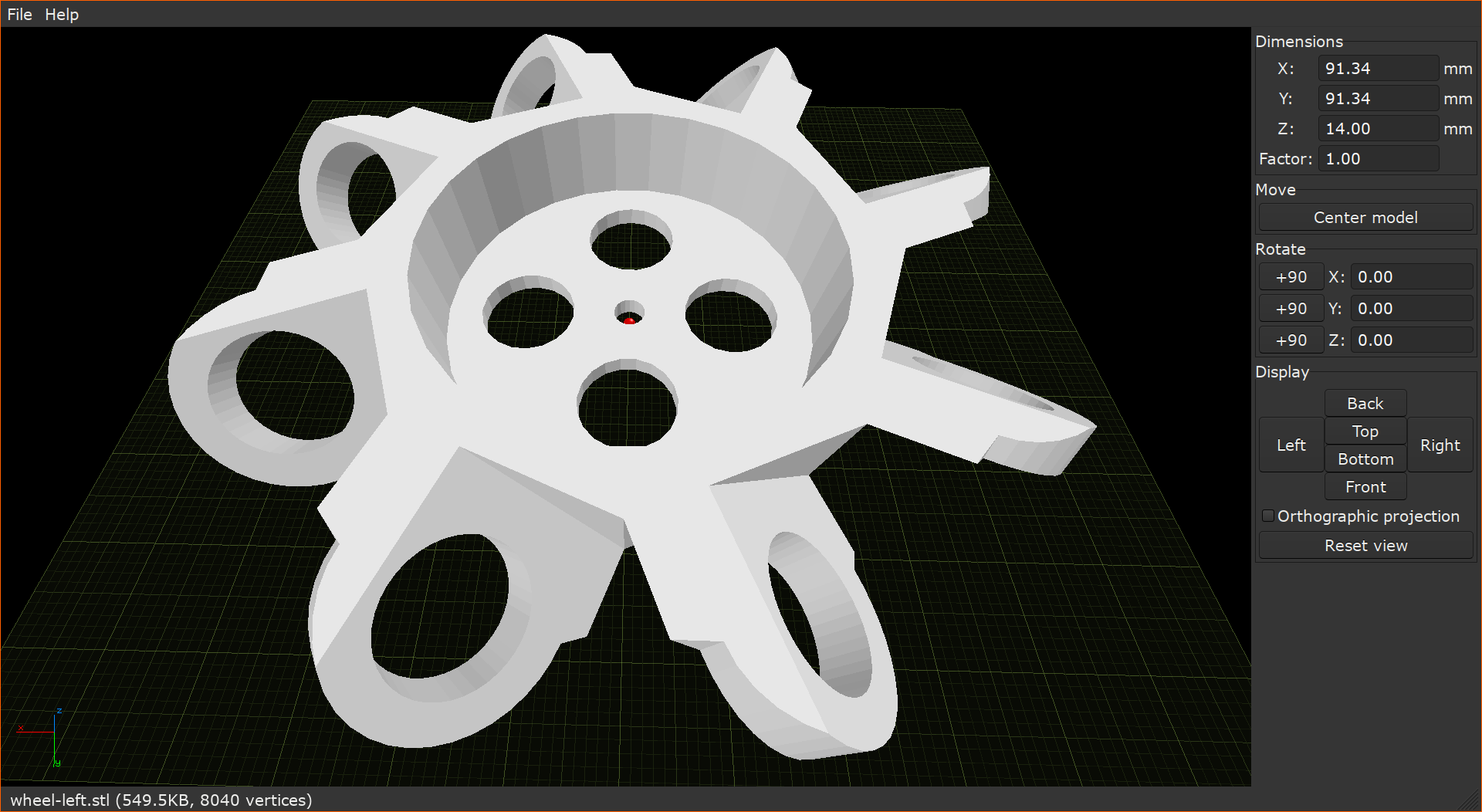

In STL mode, the Dimensions section switches to inputs to display the model's X, Y and Z dimensions and adds a Factor input. These inputs allow you to scale the model proportionally, either by changing the scale factor directly, or by setting one of the dimensions to a specified measurement, which will calculate the scale factor automatically and apply it to the model. The model can also be centered in the scene by clicking the Center model button. This ensures that the model's bounding box is centered above (0, 0, 0). The Rotate section below allows you to rotate the model either in increments of 90 degrees, or by an arbitrary number around each axis. Don't forget to save your STL file if you wish to preserve the changes you made.

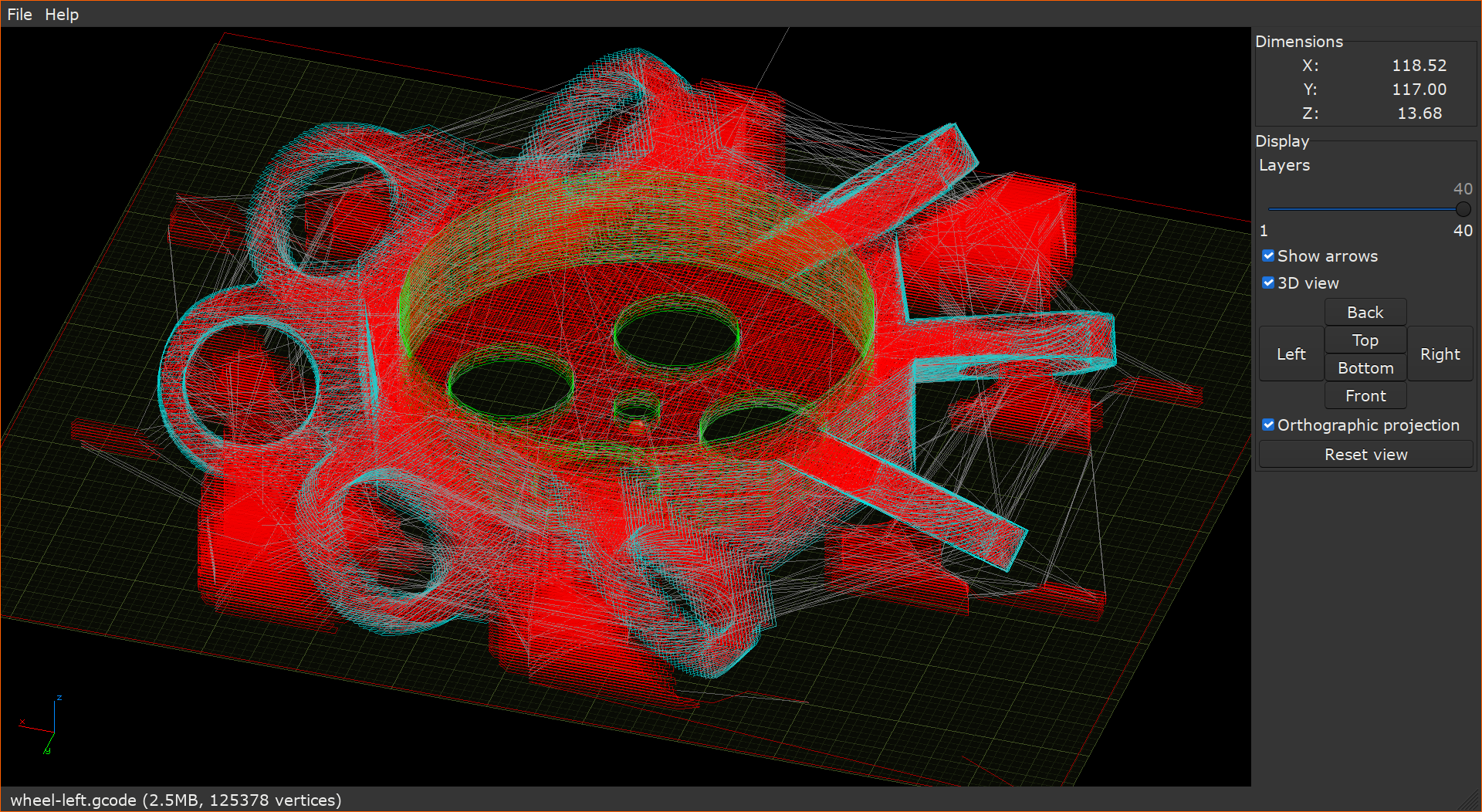

The remainder of the UI applies to both G-code and STL modes. The Top, Right, Bottom, Left, Front and Back buttons provide a quick way to adjust the camera, and the Reset view can be clicked any time to get out of a confusing camera orientation. The Orthographic projection checkbox allows you to switch from the default perspective projection to orthographic projection to view the model without perspective distortion.
